Temperature Controllers

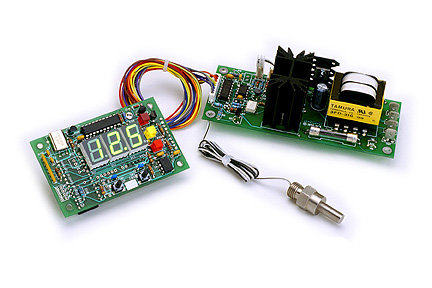

Model 100

PDF manual Model 100_Manual



Designed for original equipment manufacturers, the Model 100 Temperature Controller  provides a cost effective way to quickly and simply incorporate state of the art microprocessor-based control capabilities into a wide variety of products. It precisely regulates electrically controlled thermal processes operating at temperatures between -9.9 and 99.9 degrees C, maintaining temperature stability to within plus or minus 0.1 degrees of set point.

The Model 100 Temperature Controller gives you the benefits of digital technology and the industrial design freedom of a custom controller without the engineering and ongoing support expenses of developing your own. The rugged design of this field-proven controller ensures long, trouble free operation as demonstrated by the many thousands of Model 100s installed worldwide.

The clearly legible LED display module (which normally shows the process temperature) takes up less than 7 square inches, making the Model 100 Temperature Controller ideal for applications with small or crowded control panels. Application-specific graphics on an inexpensive printed overlay (optionally available from DCS) easily customize the Model 100's ergonomic user-interface to your product.

Designed with today’s strict product safety requirements in mind, the Model 100 complies with UL 1262 and CSA C22.2 No. 24-1987 standards. The Model 100 is also CE approved.

Several options are available, including: a second display (showing set point); integral over-temperature protection; and timer display.

PDF manual Model 100_Manual

Specifications

Control and Display Range

-9.9 to +99.9°C

Repeatability

Less than 0.1°C

Control Stability

Plus or Minus 0.1°C, typical

Maximum Load Current

10 Amps RMS

Power Requirements

120/240VAC plus/minus 10% 50-60Hz, 10W

Display

3-Digit, 0.56" (14mm) high 7-segment LED (available in several colors)

Included Sensor

Two standard formats are available, including: clip-mounted moisture-proof, or; bulkhead-mounted (stainless steel) immersible probe
